#React Navigation Plugin

The React Navigation plugin provides comprehensive navigation debugging and inspection for React Navigation v7, offering real-time action monitoring, state inspection, and deep linking testing directly within your React Native DevTools environment.

#What is React Navigation Plugin?

The React Navigation plugin is a powerful debugging tool that helps you inspect and debug navigation in your React Native application. It provides:

• Action Timeline: Track all navigation actions in real-time with detailed history
• Dispatch Origin: See the source-mapped file and line where each action was dispatched from, with the full call stack
• State Inspection: View and analyze navigation state at any point in time
• Time Travel Debugging: Jump back to any previous navigation state
• Deep Link Testing: Test and validate deep links directly from DevTools
• State Reset: Reset navigation state to any previous point in the timeline
• Real-time Updates: See navigation changes as they happen in your app

#Installation

Make sure to go through the Getting Started guide before installing the plugin.

Install the React Navigation plugin as a development dependency:

npm install -D @rozenite/react-navigation-plugin

yarn add -D @rozenite/react-navigation-plugin

pnpm add -D @rozenite/react-navigation-plugin

bun add -D @rozenite/react-navigation-plugin

deno add -D npm:@rozenite/react-navigation-plugin

Add the DevTools hook to your React Native app to enable navigation debugging:

#With react-navigation

import React, { useRef } from 'react';
import { NavigationContainer } from '@react-navigation/native';
import { useReactNavigationDevTools } from '@rozenite/react-navigation-plugin';

function App() {
  const navigationRef = useRef(null);

  // Enable React Navigation DevTools in development
  useReactNavigationDevTools({ ref: navigationRef });

  return (
    <NavigationContainer ref={navigationRef}>
      <YourAppNavigator />
    </NavigationContainer>
  );
}

#With expo-router

import { Stack, useNavigationContainerRef } from 'expo-router';
import { useReactNavigationDevTools } from '@rozenite/react-navigation-plugin';

function App() {
  const navigationRef = useNavigationContainerRef();

  // Enable React Navigation DevTools in development
  useReactNavigationDevTools({ ref: navigationRef });

  return <Stack />;
}

#Web (React Native for Web)

With Rozenite for Web, this plugin is available when you debug your React Native web app.

#Usage

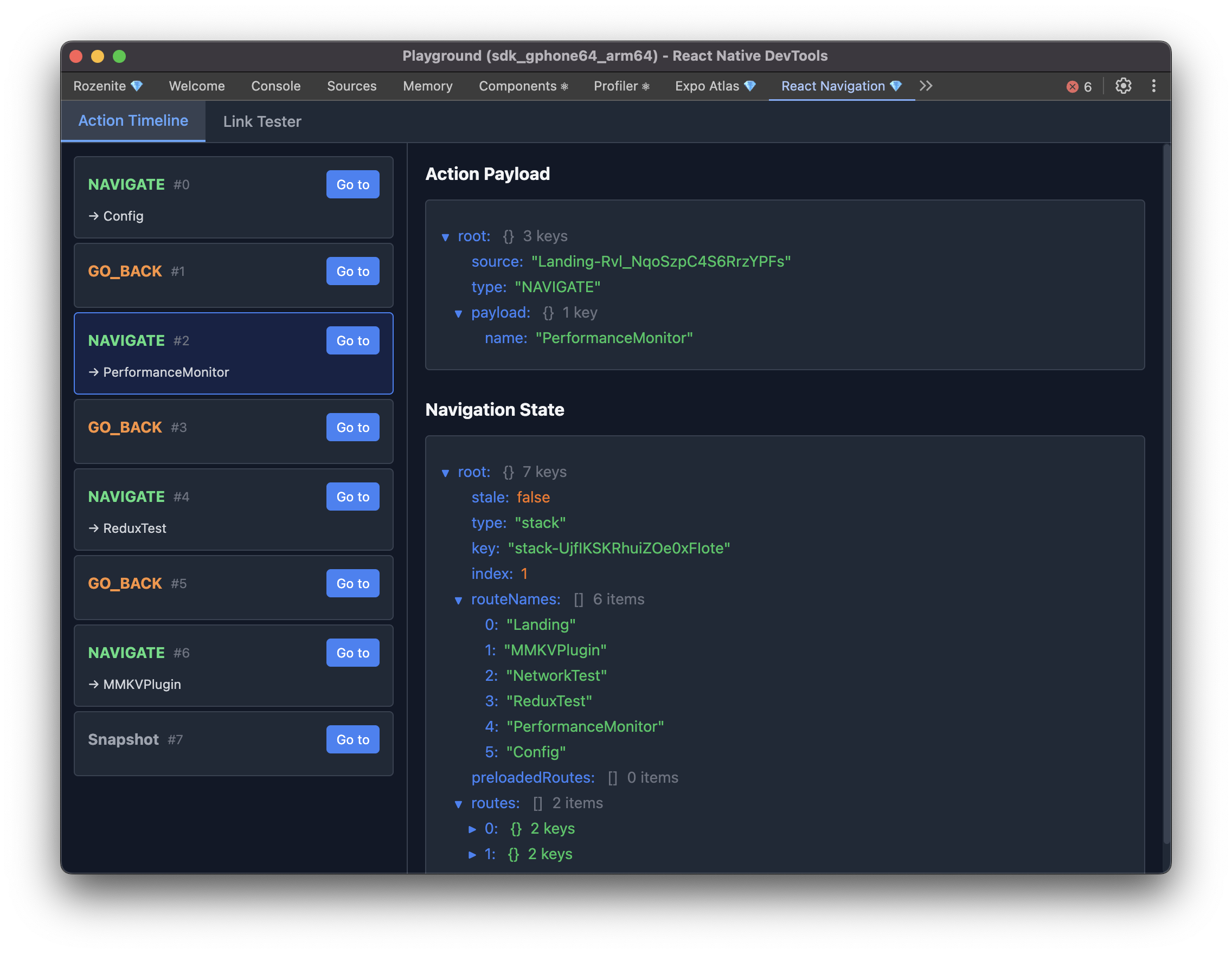

Once configured, the React Navigation plugin will automatically appear in your React Native DevTools sidebar as "React Navigation". Click on it to access two main features:

#Dispatch Origin

Every captured action is annotated with where it was dispatched from. The detail panel shows a Dispatch Origin section above the action payload:

• A headline summarising the dispatch call site, for example Dispatched from handlePress in apps/playground/src/screens/Home.tsx:42. A low confidence chip appears when the chosen frame is inside node_modules/.
• The Metro code-frame snippet for the call site when available.
• A collapsible full stack — application frames are bright, library frames (node_modules/*) are muted and tagged.
• A Copy raw button copies the unmodified stack string as React Navigation provided it.

The sidebar's action list shows a compact preview (↳ Home.tsx:42) so you can spot the source without opening each action. Symbolication runs against the Metro development server, so origins are only resolvable in development builds; release builds show "symbolication unavailable" and the raw stack remains accessible.

#Agent Integration

This plugin also exposes Agent tools under the @rozenite/react-navigation-plugin domain for LLM workflows.

• navigate (high-level)
• go-back (high-level)
• get-root-state
• get-focused-route
• list-actions
• reset-root (low-level)
• open-link
• dispatch-action (low-level)

Use navigate and go-back first for routine movement across stacks/tabs. Use dispatch-action and reset-root only when high-level tools are insufficient.

These tools allow read access to the current navigation state and recent action timeline (rolling in-memory history), plus mutation actions for navigation control and deep linking.

Entries returned by list-actions include an origin payload (when React Navigation supplied a stack) with the source-mapped frames, the chosen origin frame, a confidence level, and the symbolication status. Agents should read origin.originFrame after confirming origin.symbolicationStatus === 'complete'.

#Contributing

The React Navigation plugin is open source and welcomes contributions! Check out the Plugin Development Guide to learn how to contribute or create your own plugins.

#Support

If you encounter issues with the React Navigation plugin:

1. Check Documentation: Review this guide for common solutions
2. Verify Setup: Ensure React Navigation v7 is properly installed and configured
3. Check Ref: Verify that you're passing the NavigationContainer ref correctly
4. Search Issues: Look for similar issues in the repository
5. Create Issue: Report bugs or request features
6. Community: Reach out to the Rozenite community for help

Next: Learn about Plugin Development to create your own plugins, or explore other Official Plugins.
